Unit and Floor Plan

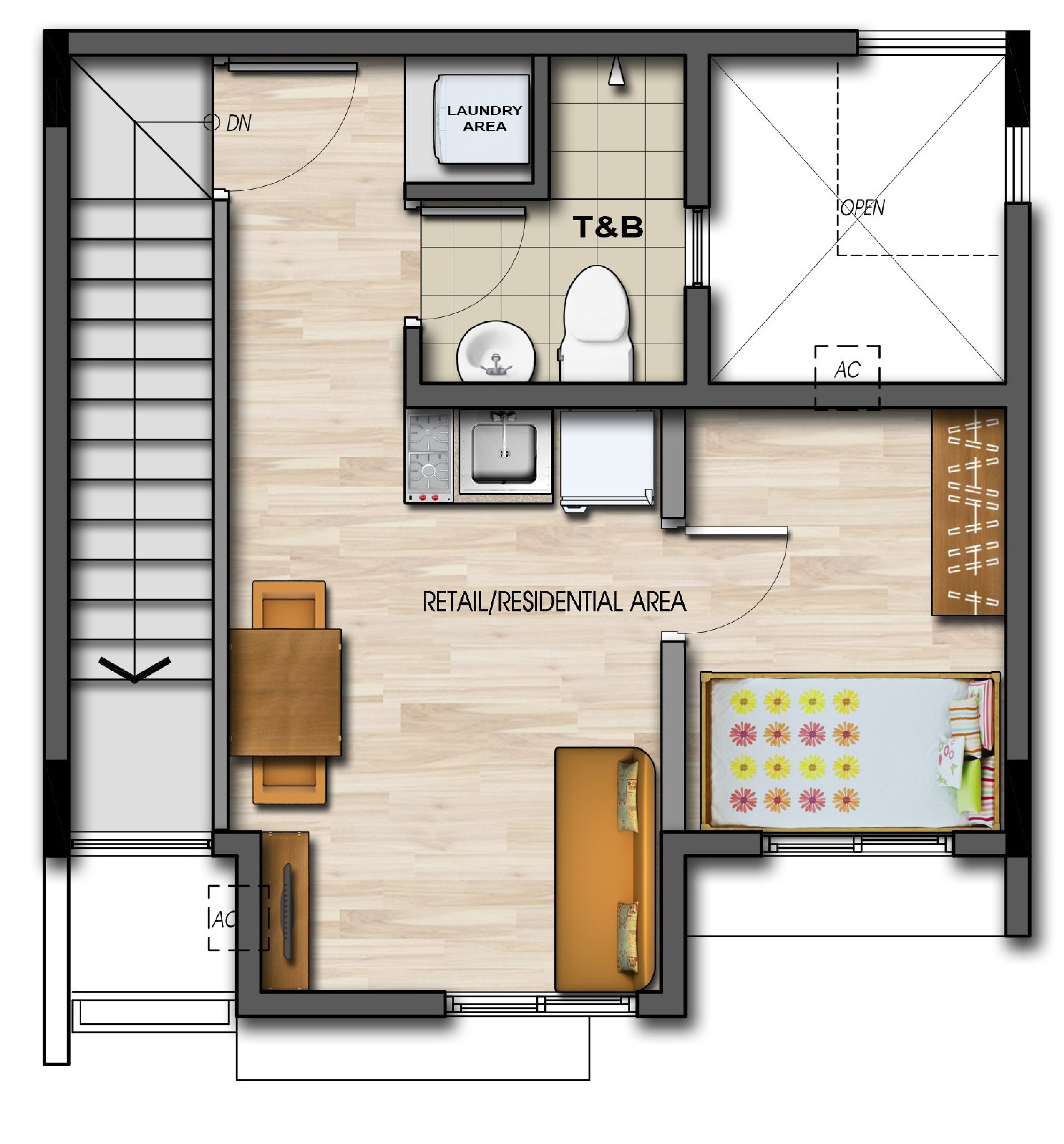

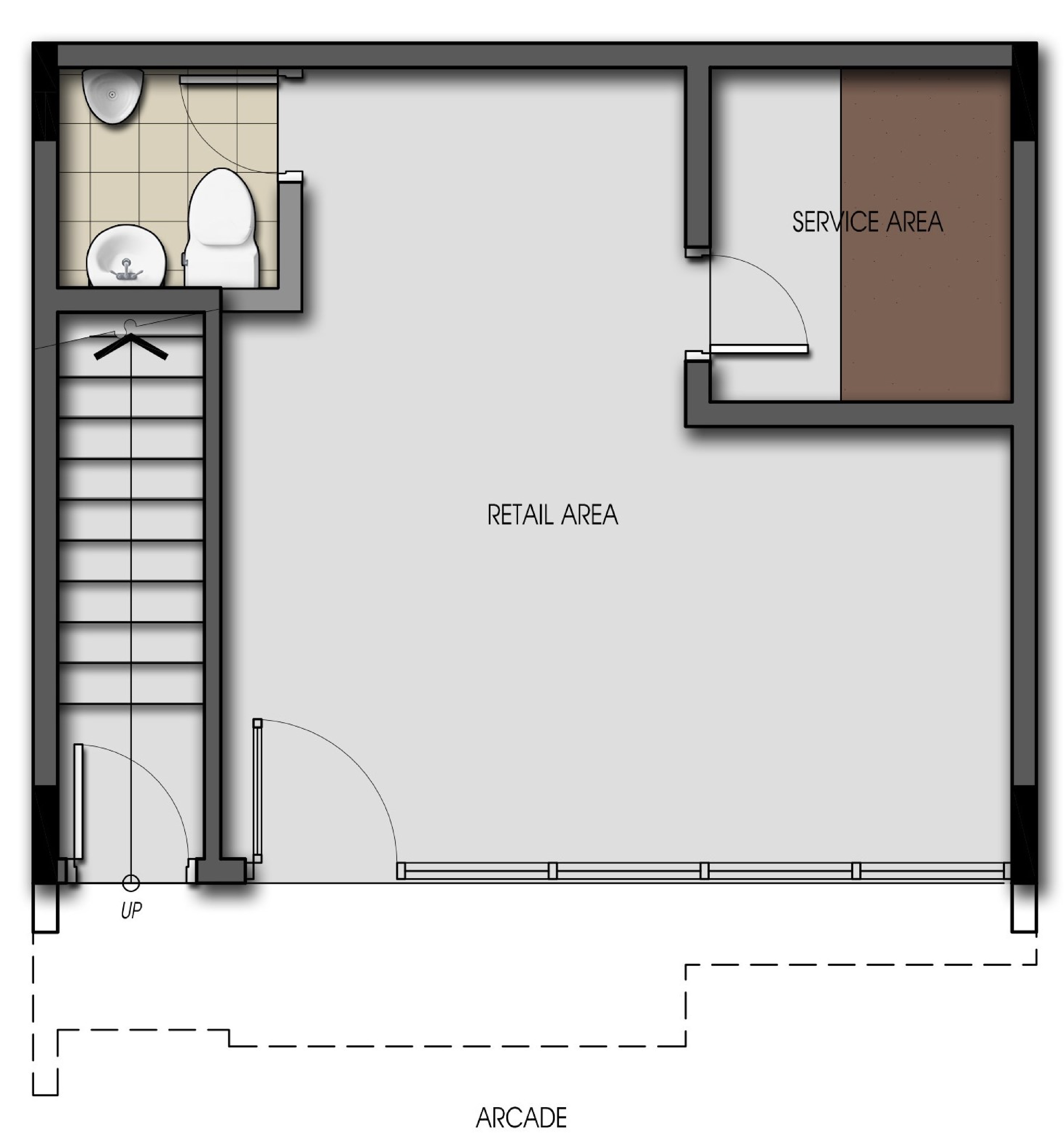

NEW-UNIT - Three-storey Shophouse (suggested layout)
(Approximate Sizes Only)
SQ.M
SQ.FT
Stairs
5.79
62.32
Residential (3rd floor)
20.34
218.94
Toilet & Bath
3.33
35.84
Retail (1st floor)
22.64
243.69
Stairs
4.02
43.27
Service Area
1.76
18.94
Residential (2nd floor)
23.67
254.78
TOTAL AREA77.53254.30

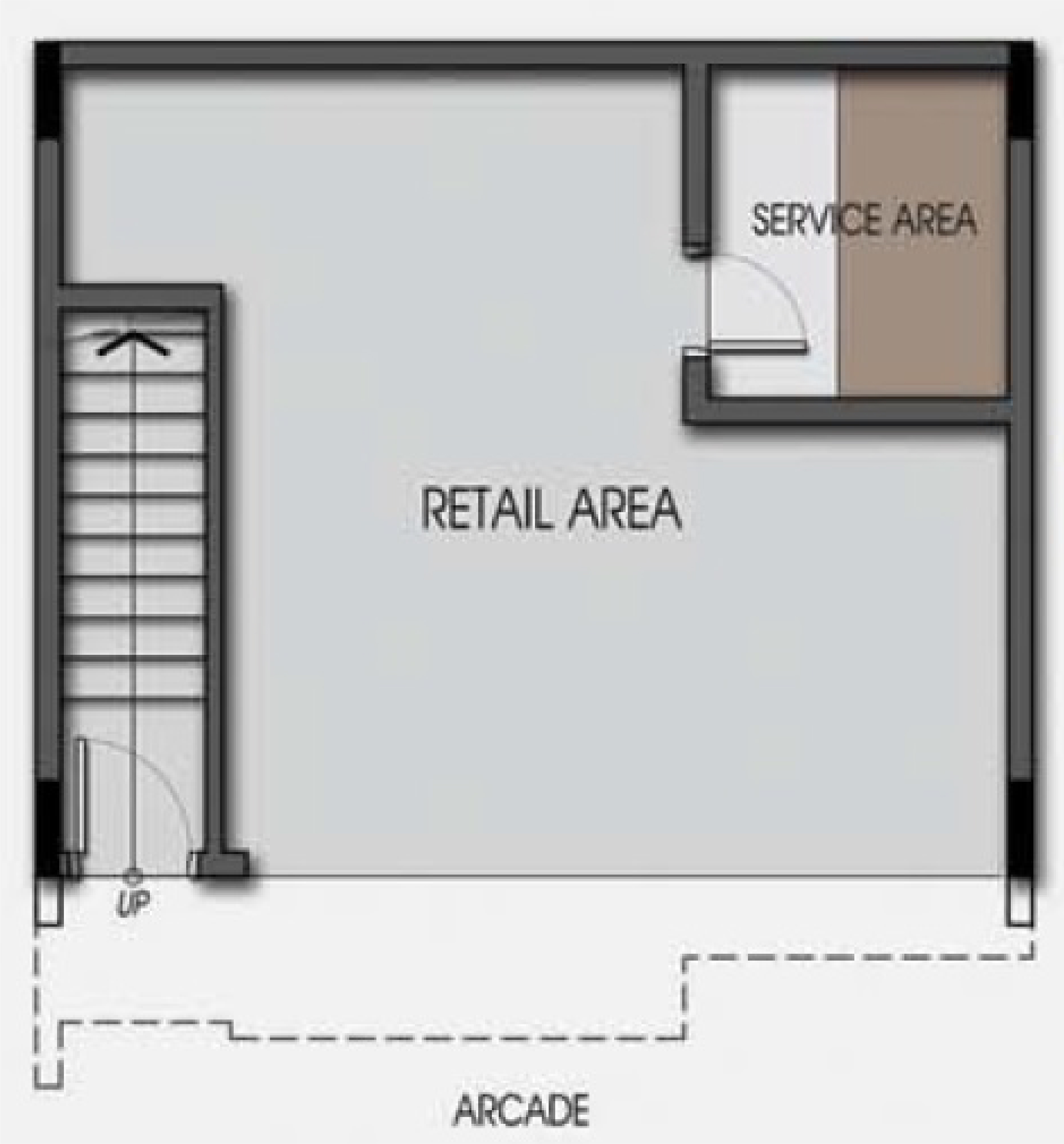

NEW-UNITTwo-storey Shophouse (suggested layout)
1/2
NEW-UNITTwo-storey Shophouse (suggested layout)
