Unit and Floor Plan

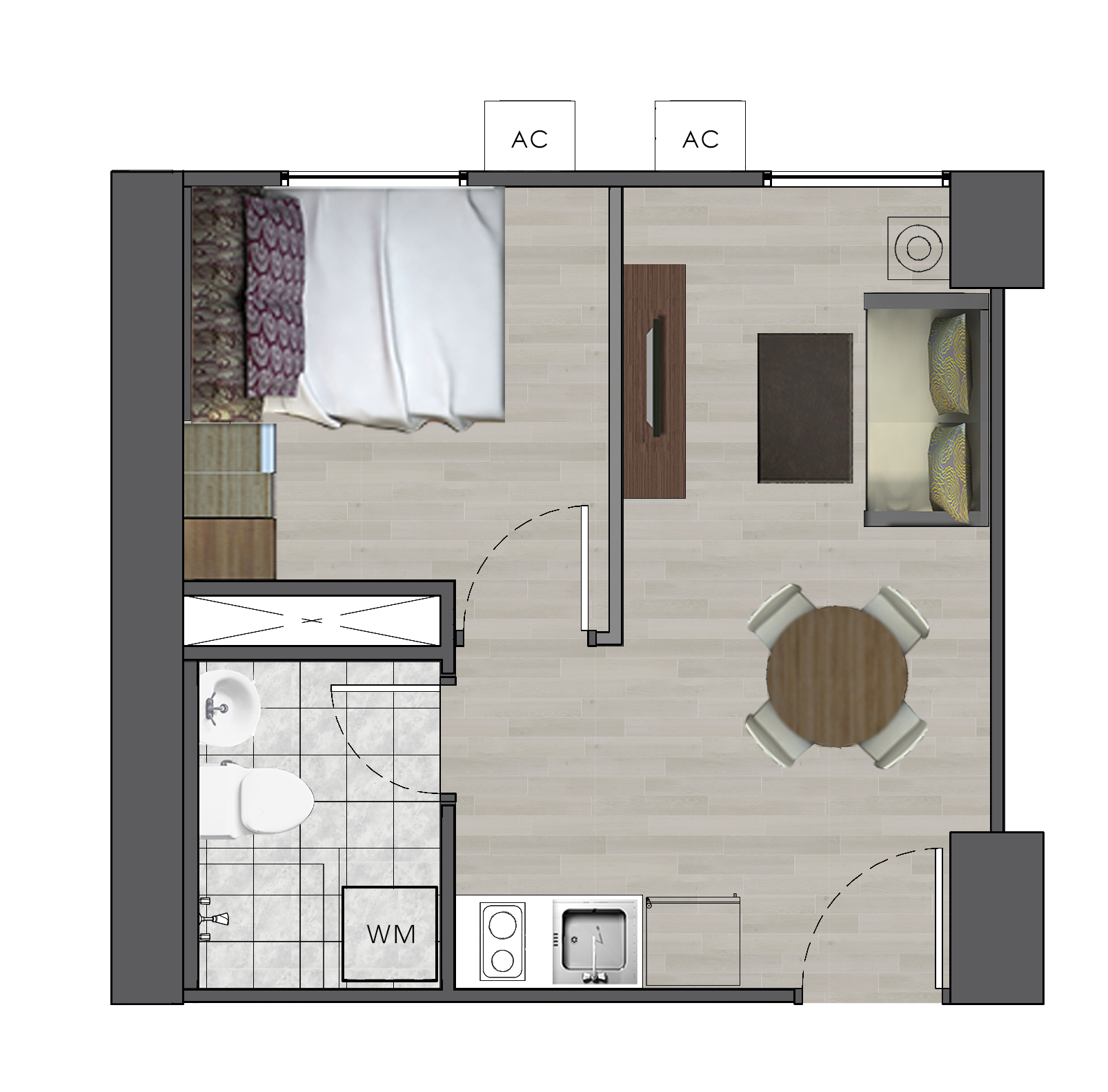

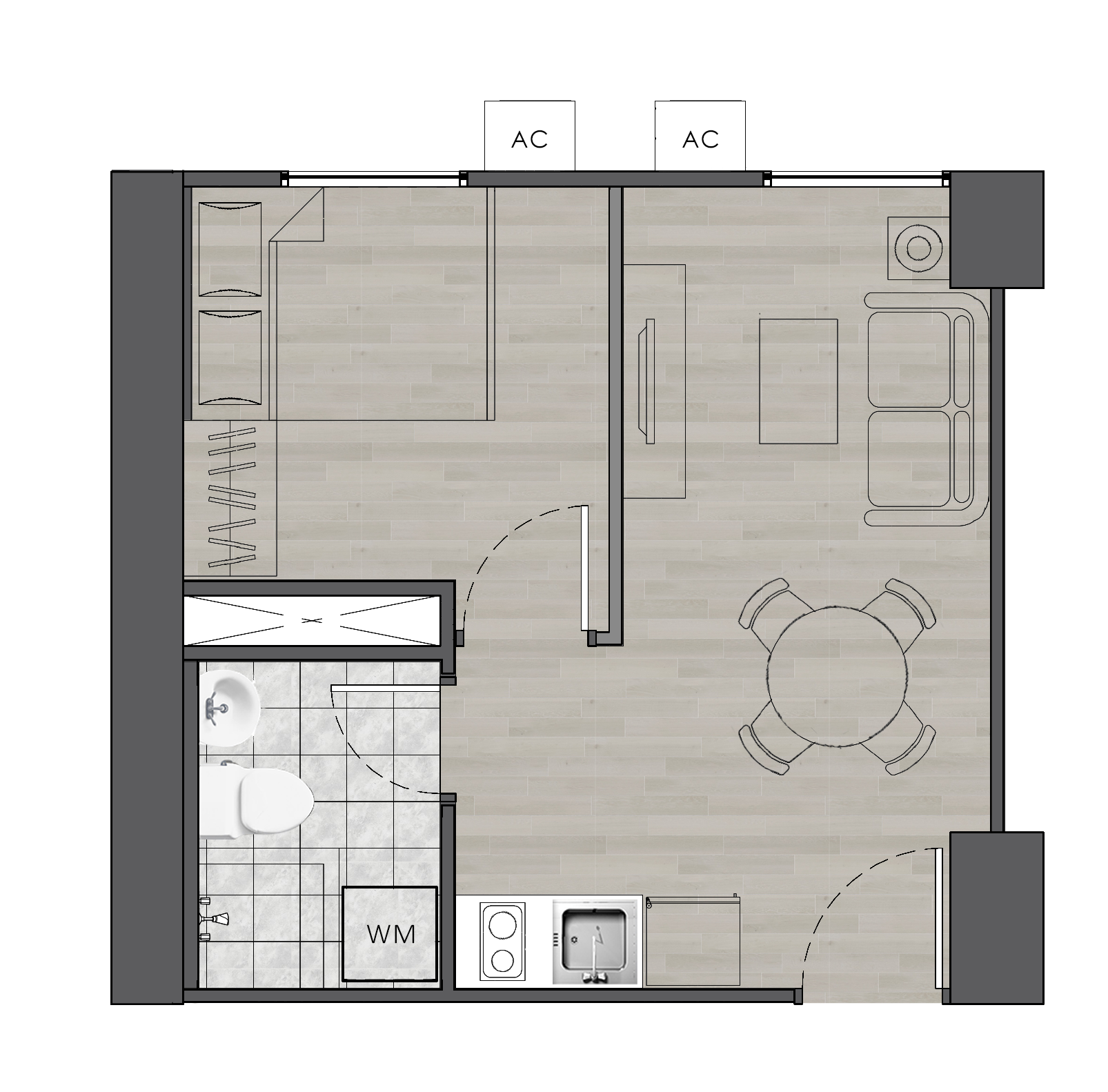

NEW-UNIT - One-bedroom (suggested layout)
(Approximate Sizes Only)
SQ.M
SQ.FT
Living/Dining
11.43
123.03
Toilet & Bath
3.63
39.07
Bedroom
8.52
91.71
Kitchen
4.65
50.05
TOTAL AREA28.2292.56
NEW-UNITTwo-bedroom (suggested layout)
1/3
NEW-UNITStudio (suggested layout)
